R series

John Deere , Import Tractors

Engine manufacturer

130 - 290 PS

Engine power

4257 - 7699 kg

Hitch lift capacity

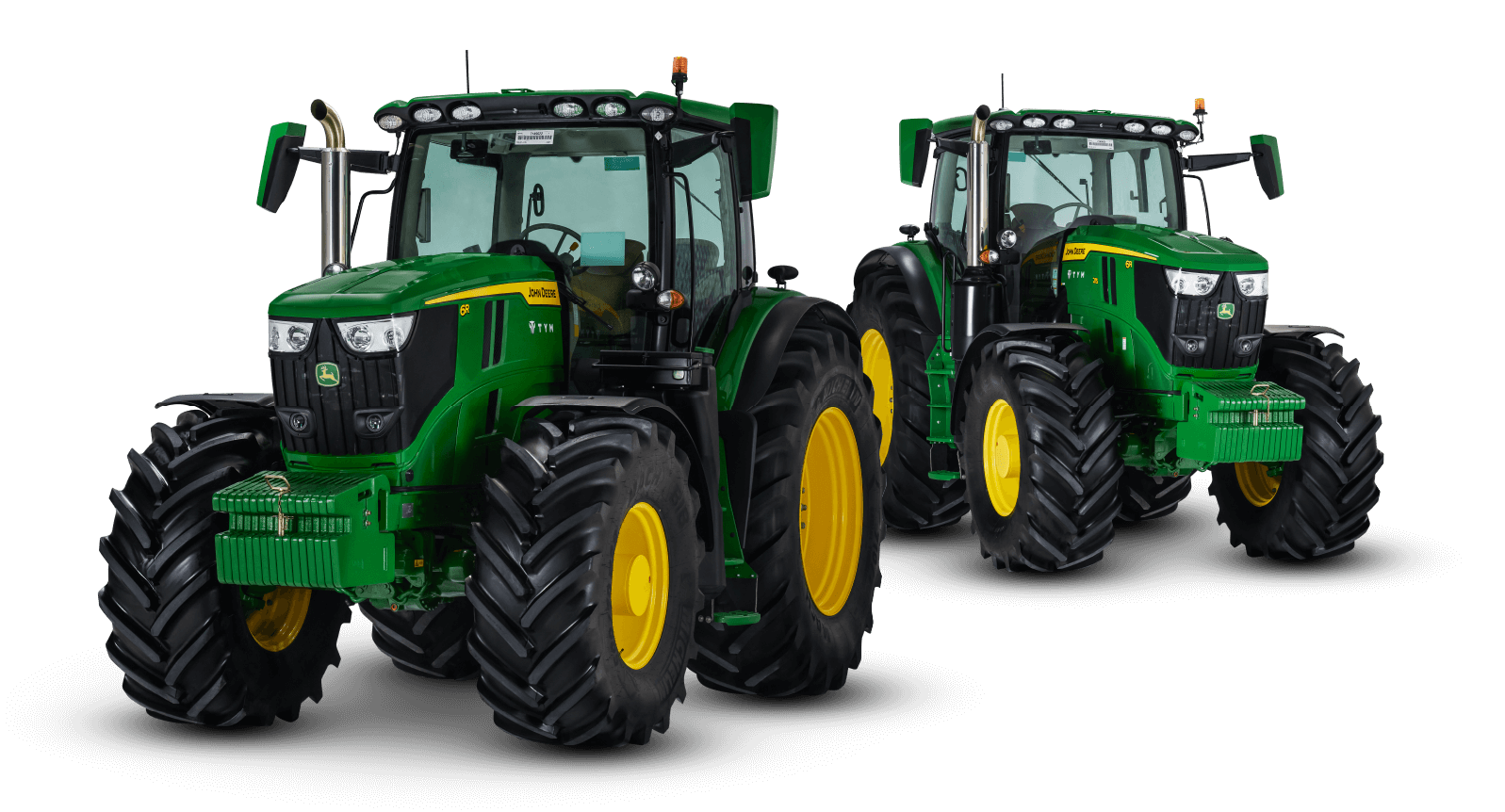

The R Series imported directly from Manheim, Germany

The John Deere R Series tractors are equipped with wide Michelin tires, a command center screen, and hydraulic top linkage on all models. (6R 145 and higher are available with Auto Power transmission (continuously variable), CommandPro levers, iTEC capability, and trailer brakes). Beyond these useful features, the impressive John Deere eVGT engine ensures efficient fuel consumption for all your heavy-duty tasks.

DOWNLOAD BROCHURE

*Images on this page are for illustrative purposes only. The actual product may vary.

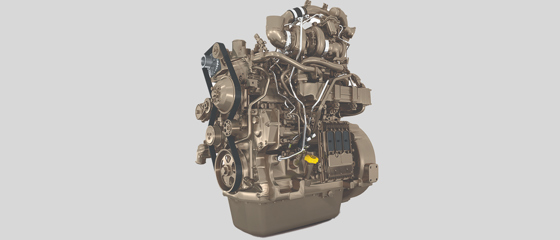

4-cylinder John Deere eVGT engine (6R 110, 6R 120, 6R 130)

The eVGT engine enables efficient operation by increasing the PTO output by 20 horsepower for the 6R 110 and 6R 120 and by 30 horsepower for the 6R 130, during high load operations.

6-cylinder John Deere eVGT engine (6R 145, 6R 155, 6R 175, 6R 215, 6R 250)

The eVGT engine enables efficient operation by increasing the PTO output by 40 horsepower during high load operations.

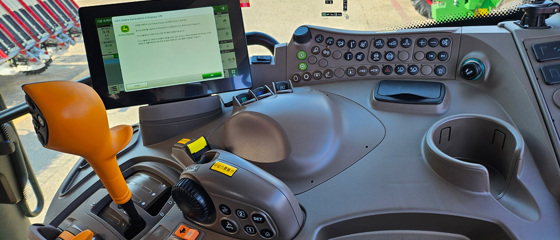

Ergonomic control panel (6R 110, 6R 120, 6R 130)

The ergonomically designed control panel enables more comfortable operation.

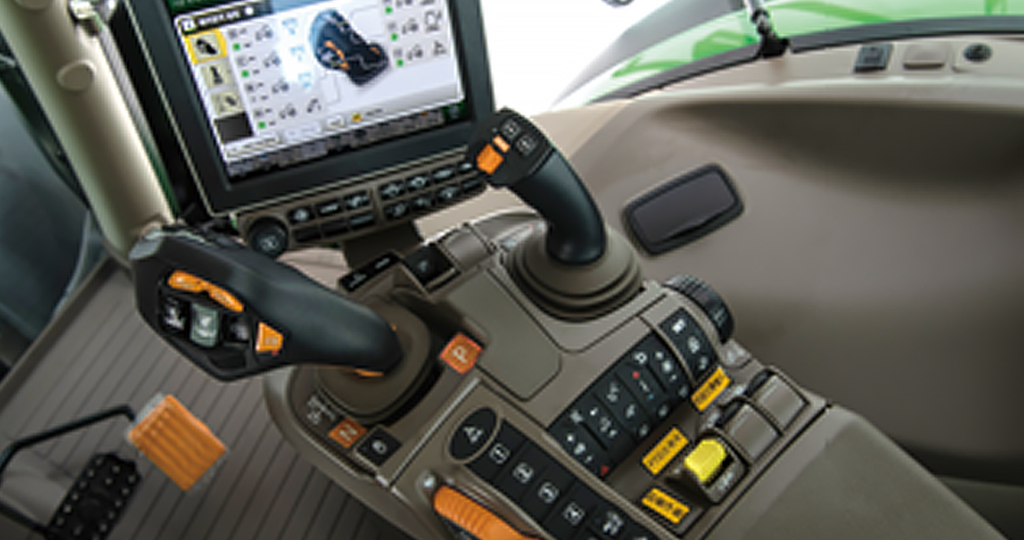

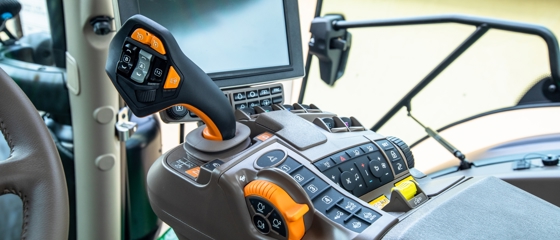

CommandPRO Joystick (6R 145 and above)

The AutoPowr gear-less transmission allows operation to be easily controlled with the CommandPRO Joystick.

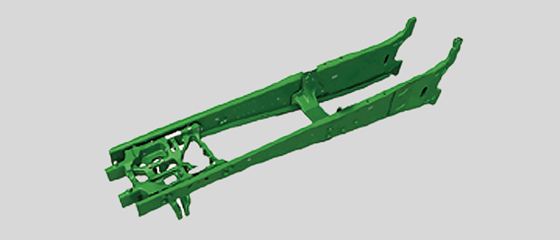

Full frame type transmission

Low noise and vibration even during heavy load operations.

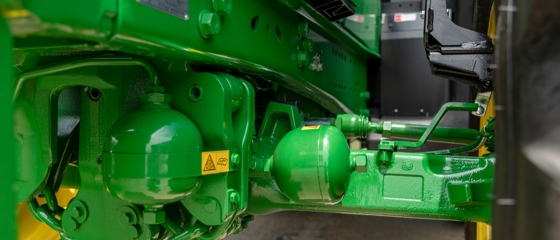

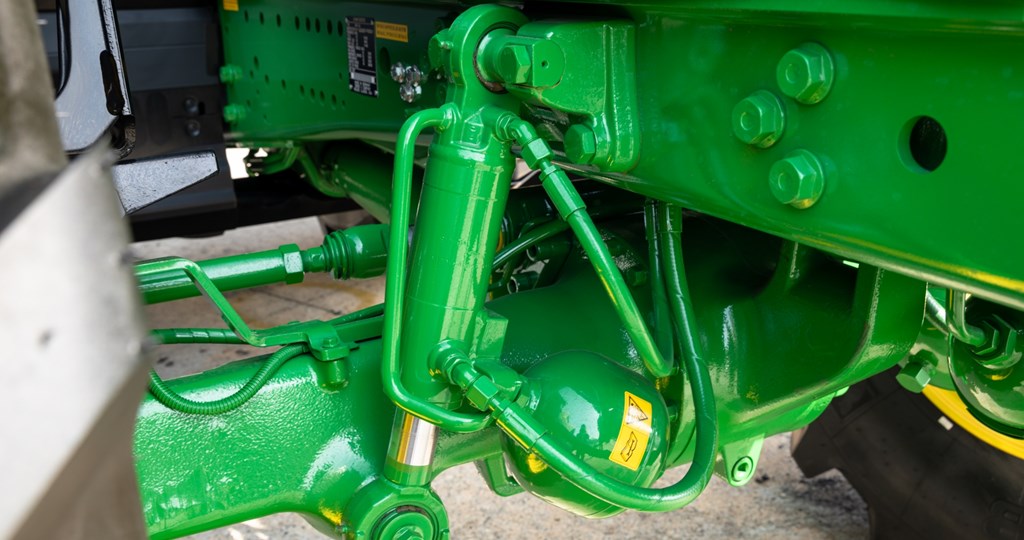

Front and rear hydraulic suspension (6R 145 and above)

The front and rear hydraulic suspension system provides a smooth ride. Also, for the 6R 145 model and above, the wide Michelin tires increase the ride comfort even more.

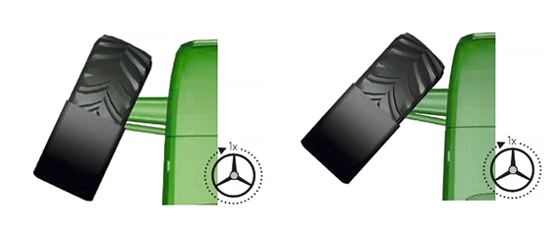

Variable ratio steering (6R 145 and above)

With less steering rotation and less steering effort, the turning radius decreases during cornering.

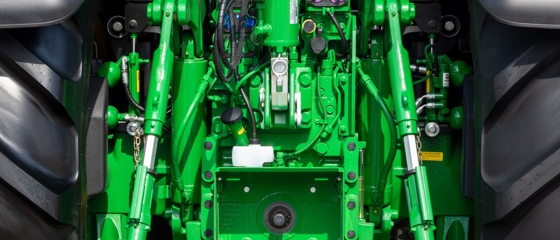

8 ports external hydraulic valve (6R 130 to 6R 215)

Install a wide range of implements with 8 ports on the 6R 130 to 6R 215 models.

Experience premium John Deere tractors with TYM, the first importer in the Korean market.

The powerful John Deere engine, PowrQuad Plus and Auto Power transmissions, and the smart convenience features, ensure smooth driving and work.

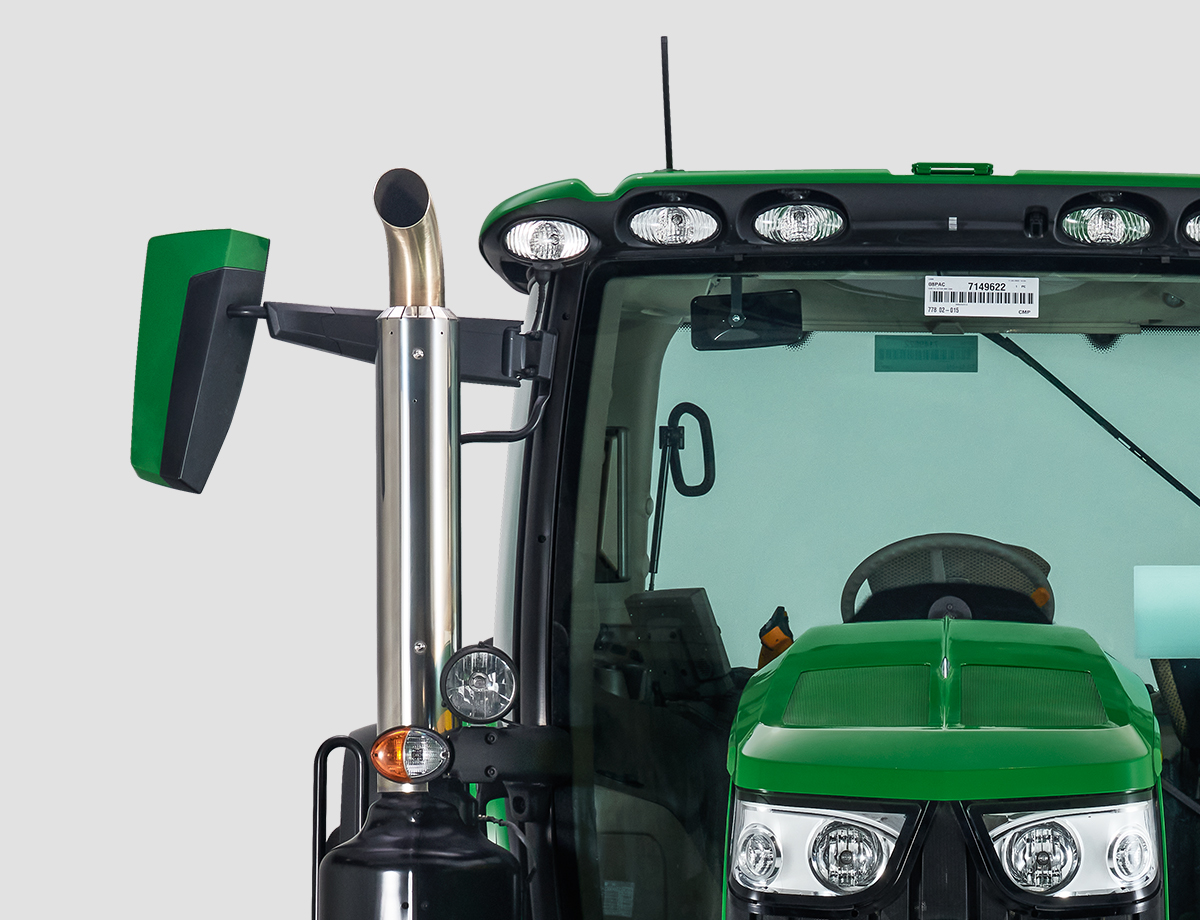

1. Stainless steel high-capacity SCR exhaust pipe

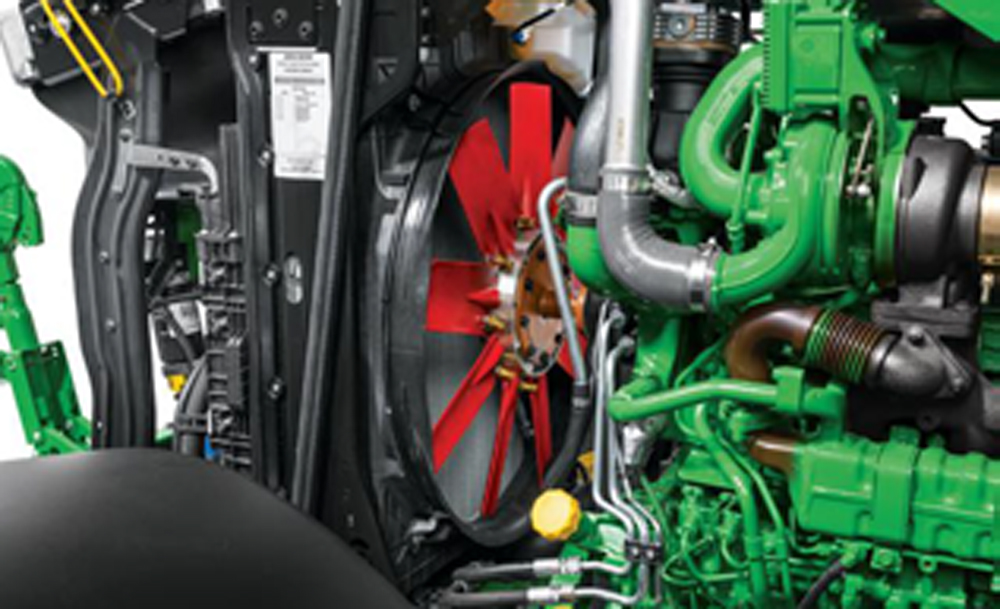

2. Reverse fan in the engine compartment

3. Front and rear hydraulic suspension (6R 145 and above)

4. CommandPRO Joystick (6R 145 and above)

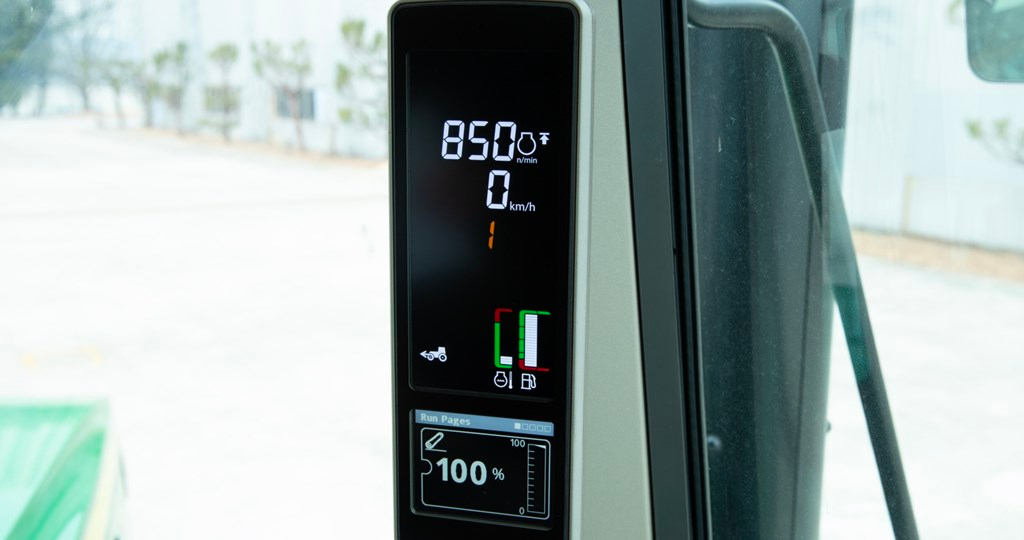

5. Digital instrument pane

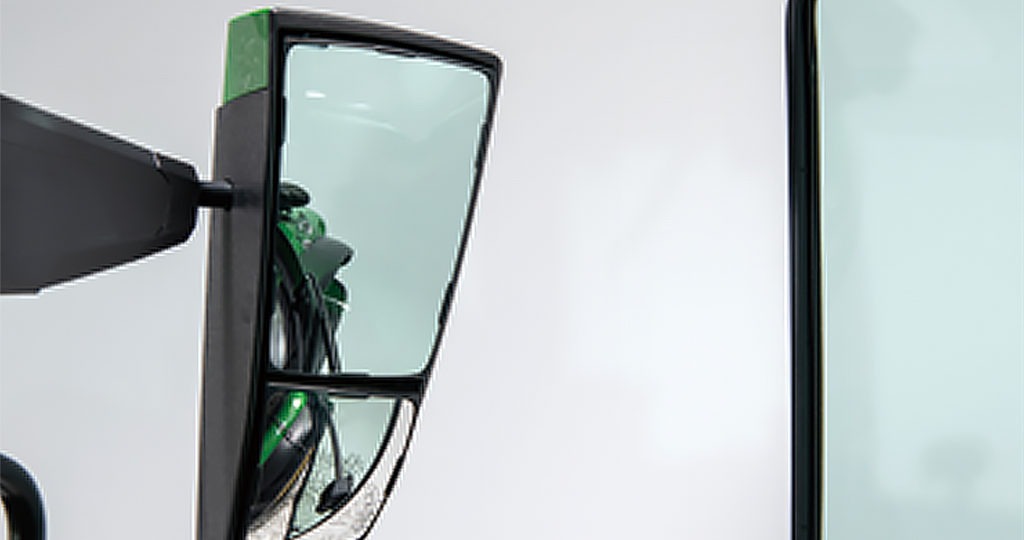

6. Electric dual side mirrors (6R 175 and above)

STORIES FROM THE FIELD

“The performance of the K110E is really amazing, and the price is excellent too. For someone like me who has to handle both barn work and farming, this TYM tractor is the most reliable and sturdy friend.”

While cultivating rice and raising more than 40 cattle, the K110E has shown me performance beyond my expectations. It's the perfect tractor for me, needing a higher horsepower machine. Not only is the performance outstanding, but the price is also very good. Until now, I have been using imported tractors, but now I want to recommend TYM tractors to anyone looking to purchase one. My most reliable friend that helps me with the tough work of the barn and farming is this TYM tractor.

“When it comes to power, 'Mr. T' does not mess around. It has made farm work not just efficient but enjoyable too! I love working on my land day and night—from dusk till dawn.”

'Mr. T,' our TYM T654 tractor, is powerful! I can cut and bale hay all day and all night, even until 2 a.m. It has become a trusty partner here at Britten Farms, helping us achieve so much and making every step of the journey more rewarding and enjoyable.

“My favorite feature about the tractor is the front-mount snow blower. It’s the first time I’ve ever had one of those, and it has made my life so much easier.”

Whether it's winter, summer, spring, or fall, Timmy was built to handle all seasons with ease! From clearing the snow to bush clearing, it's tough, reliable, and durable!

“We have over 30 acres of land, so it requires a lot of work. Thankfully, we now have TYM to assist us with that.”

Tim, my TYM T25 tractor, is great at handling Gaylord, Michigan’s harsh winters. I’ve also equipped it with pallet forks and a box blade for land clearing, hobby farming, gardening, and trail building. If I were to rate it, I’d give it a 9/10—it’s powerful, versatile, and very reliable!

"I have purchased five tractors from TYM so far, and if I need to buy more, it will definitely be from TYM."

I have personally developed this farm since I was 30. I handle everything with automation using tractors purchased from TYM, only hiring help during busy seasons. Although it is tough, I am proud and fulfilled. Therefore, the machines and services are essential to me. The Buyeo TYM dealership, which responds whenever I need, is very trustworthy. This is why I have been a loyal TYM fan for two generations, starting with my father's time.

“It’s hard to explain how much that tractor has helped me in getting busy and outside and physically fit again.”

Since 'BIG RED' came into my life, courtesy of TYM, it's been a game-changer! This reliable tractor has rejuvenated my days, helping me restore my energy. Thanks to TYM, I'm not just driving a tractor - I've found renewed purpose and vitality.

“The lift capacity on both the front and rear really stood out to me."

The pandemic inspired our homesteading journey. Our TYM T654 tractor is not only reasonably priced but also powerful - it is an essential partner for turning our homesteading and sustainable living dreams into reality.

“I was surprised by how user-friendly it was and I also underestimated the power of its lift capacity.”

‘Little Red,' my compact TYM T25 tractor, can handle anything on my 19.6-acre property, from bush hogging to logging and even grinding stumps. It effortlessly navigates tight spots, saving me time and hassle. With its impressive power, I was able to lift 1400 lbs of logs without breaking a sweat! That's the kind of reliability and durability you can expect from TYM.

SEE TYM’S CUSTOMER STORIES

Technical Specification

Tractors Model	6R 110	6R 120	6R 130	6R 145	6R 155	6R 175	6R 215	6R 250
Engine manufacturer	John Deere 4045HL555(H)	John Deere 4045HL555(I)	John Deere 4045HL555(J)	John Deere 6068HL555(D)	John Deere 6068HL555(E)	John Deere 6068HL577(D)	John Deere 6068HL577(G)	John Deere 6068HL550(D)
Engine power	110 PS \| 96 kW	120 PS \| 103 kW	150 PS \| 110 kW	185 PS \| 135 kW	195 PS \| 144 kW	215 PS \| 158 kW	255 PS \| 188 kW	290 PS \| 213 kW
Rated engine speed	2100 rpm	2100 rpm	2100 rpm	2100 rpm	2100 rpm	2100 rpm	2100 rpm	2100 rpm
Displacement	4525 cc \| 276.13 cu. in.	4525 cc \| 276.13 cu. in.	4525 cc \| 276.13 cu. in.	6788 cc \| 414.2 cu. in.	6788 cc \| 414.2 cu. in.	6788 cc \| 414.2 cu. in.	6788 cc \| 414.2 cu. in.	6788 cc \| 414.2 cu. in.
No. of speeds	F24 x R24	F24 x R24	Continuously variable	Continuously variable	Continuously variable	Continuously variable	Continuously variable	Continuously variable
Hitch lift capacity	4257 kgf	4257 kgf	4257 kgf	5228 kgf	5228 kgf	6275 kgf	7373 kgf	7699 kgf
PTO rear	540/750/1000 rpm	540/750/1000 rpm	540/750/1000 rpm	540/750/1000 rpm	540/750/1000 rpm	540/750/1000 rpm	540/750/1000 rpm	540/750/1000 rpm
Fuel tank	225 L \| 59.4 gal	225 L \| 59.4 gal	255 L \| 67.4 gal	312 L \| 82.4 gal	312 L \| 82.4 gal	421 L \| 111.2 gal	405 L \| 106.99 gal	410 L \| 108.3 gal
Overall length with 3-point hitch	4445 mm \| 175 in.	4445 mm \| 175 in.	4445 mm \| 175 in.	4865 mm \| 191.5 in.	4865 mm \| 191.5 in.	4990 mm \| 196.4 in.	5045 mm \| 198.6 in.	5150 mm \| 202.7 in.
Overall width	2290 mm \| 90.1 in.	2290 mm \| 90.1 in.	2290 mm \| 90.1 in.	2365 mm \| 93.1 in.	2460 mm \| 96.8 in.	2460 mm \| 96.8 in.	2510 mm \| 98.8 in.	2710 mm \| 106.6 in.
Wheelbase	2580 mm \| 101.6 in.	2580 mm \| 101.6 in.	2580 mm \| 101.6 in.	2765 mm \| 108.8 in.	2765 mm \| 108.8 in.	2800 mm \| 110.2 in.	2835 mm \| 111.6 in.	2900 mm \| 114.1 in.
Height to top of cabin	2880 mm \| 113.4 in.	2880 mm \| 113.4 in.	2880 mm \| 113.4 in.	3020 mm \| 118.9 in.	3110 mm \| 122.4 in.	3190 mm \| 125.5 in.	3280 mm \| 129.1 in.	3390 mm \| 133.4 in.
Min. ground clearance	440 mm \| 17.3 in.	440 mm \| 17.3 in.	440 mm \| 17.3 in.	460 mm \| 18.1 in.	500 mm \| 19.6 in.	435 mm \| 17.1 in.	455 mm \| 17.9 in.	455 mm \| 17.9 in.
Weight with cab	5660 kg \| 12478.2 lb	5660 kg \| 12478.2 lb	5660 kg \| 12478.2 lb	7415 kg \| 16347.3 lb	7545 kg \| 15663.8 lb	8260 kg \| 18210.1 lb	8350 kg \| 18408.6 lb	9330 kg \| 20569.13 lb
Agricultural - Front	380 / 85R 28	380 / 85R 28	380 / 70R 28	540 / 65R 28	540 / 65R 30	540 / 65R 30	600 / 70R 28	600 / 70R 28
Agricultural - Rear	460 / 85R 38	460 / 85R 38	520 / 70R 38	650 / 65R 38	650 / 65R 42	650 / 65R 42	710 / 70R 42	800 / 70R 38
	REQUEST QUOTE	REQUEST QUOTE	REQUEST QUOTE	REQUEST QUOTE	REQUEST QUOTE	REQUEST QUOTE	REQUEST QUOTE	REQUEST QUOTE
